PHS 3230-34 COLLAPSIBLE
PLASTIC CONTAINER

Part Number: 4701003

The PHS 3230-34 collapsible plastic container offers superior quality and value. This 2,000 lb.-capacity, heavy-duty plastic container is built to provide years of service under the toughest conditions. It has pallet jack and 4-way forklift access for secure and efficient handling. Able to be stacked 6 units high when filled to capacity, the 32 x 30 x 34 plastic container saves floor space and efficiently utilizes your warehouse.

Specification

PHS 3230-34 COLLAPSIBLE PLASTIC CONTAINER SPECIFICATIONS

Dimensions

  • Exterior Height
    34
  • Exterior Width
    30
  • Exterior Length
    32
  • Interior Height
    27.3
  • Interior Width
    27.3
  • Interior Length
    29.2

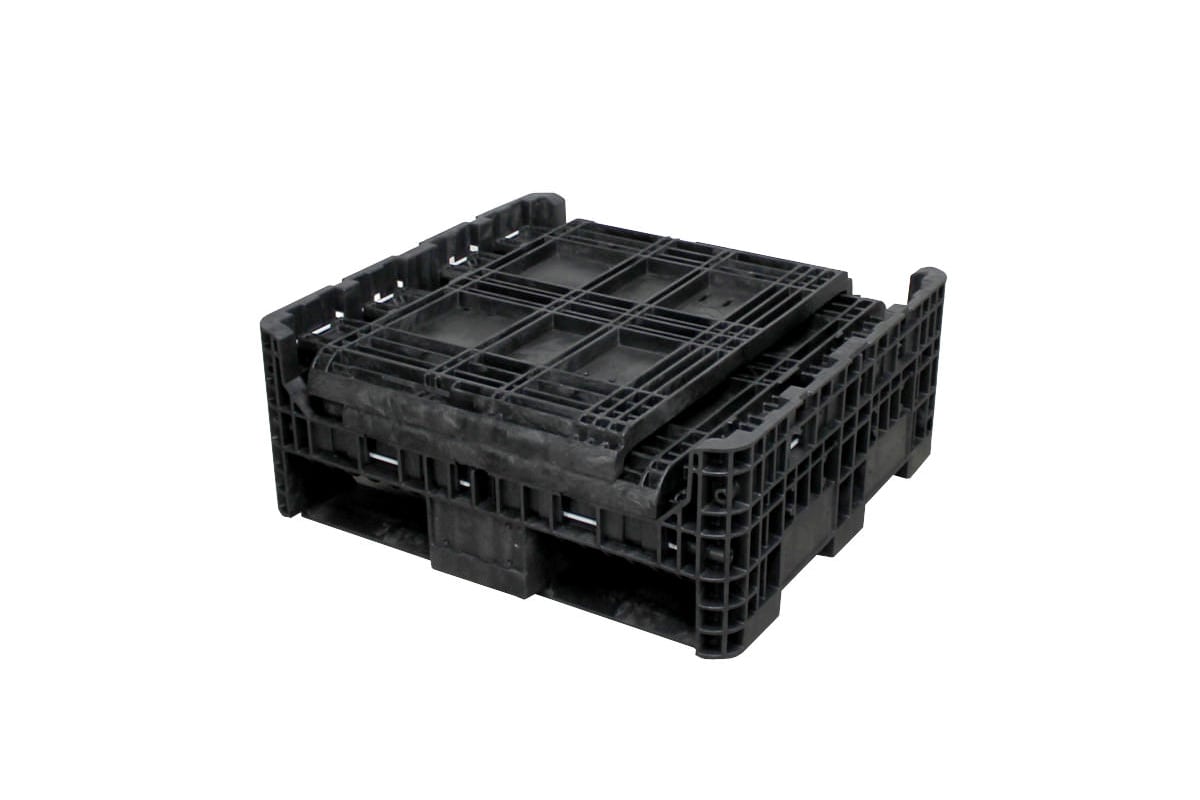

  • Collapsed Height
    13.2

Capacity

  • Internal Volume ft³
    12.6
  • Weight Capacity (lbs.)
    2000
  • Static Loading
    6
  • Dynamic Load Stack
    3
  • Max. Stack Weight
    N/A
  • Floor Type
    Solid

Shipping

  • 53′ Trailer Load
    189
  • 53′ Load Collapsed
    480
  • Fork Opening Short
    2.3×7.1
  • Fork Opening Long
    3.4×10.2
  • Fork Lift Entry
    4
  • Weight
    81.00

Features

  • Drop Doors
    2
  • Door Height
    15.7
  • Door Width
    18
  • Ventilation
    No
  • Approvals
    N/A
  • Optional Lid
    HL3032
