Centering Station
Optimum logistics management thanks to centering station from Premier
Efficient material flow systems are an important area of logistics management. Through the use of high-quality machines, it is possible to transport goods elements to the desired destination inside a company and in addition, improve the safety and efficiency of the packaged goods on the pallets. All side centering stations from Premier plays a decisive role here. Even you can secure the benefits of our products and improve your logistics and warehouse management.
- Gentle positioning of packaged goods and pallets
- Better pallet safety and packing quality
- Reduced packing costs
- Economical handling
- Easier, automatic depalletizing
- Safe transport
Specifications
- Performance: 30 – 100 cycles per hour
- Control mode: hold-to-run or automatic control
- Loading and unloading: electrical or forklift truck/conveyor technology
- Clamping walls: driven by electric or pneumatic
- Power supply: 4 kVA – 16A 230/400 V R1/2″, 6 bar
- Dimensions (L x W x H in inches): 131.8"x117.7"x129.9"x216.5"x170.4"x137.7"
Pallet Loading
- Total weight up to 2,204 lbs.
- Standard pallet (W x L in inches): 39.3" x 47.2"
- Max. height incl. pallet: 78.7"
- Goods: e.g. cardboard boxes, boxes, big-bags, bottles or pallet stacks
- Overhang tolerance for each side: 1.9"
Options
- Further pallet widths
- Pallet height > 78.7"
- Load > 2,204 lbs.
Further details on the respective product page (see below)
The all enclosing centering solution for every application
Wherever pallets are moved manually and automatically, malfunctions and stoppages with inclined pallet stacks or slipped loads can occur: A typical location is in the high-bay warehouse pre-zone prior to contour control. In the case of a production line, it may be necessary to precisely align the loaded pallets after the truck transport for further automated processing. The application possibilities are just as varied as the technical challenges that Baust engineers are happy to face.

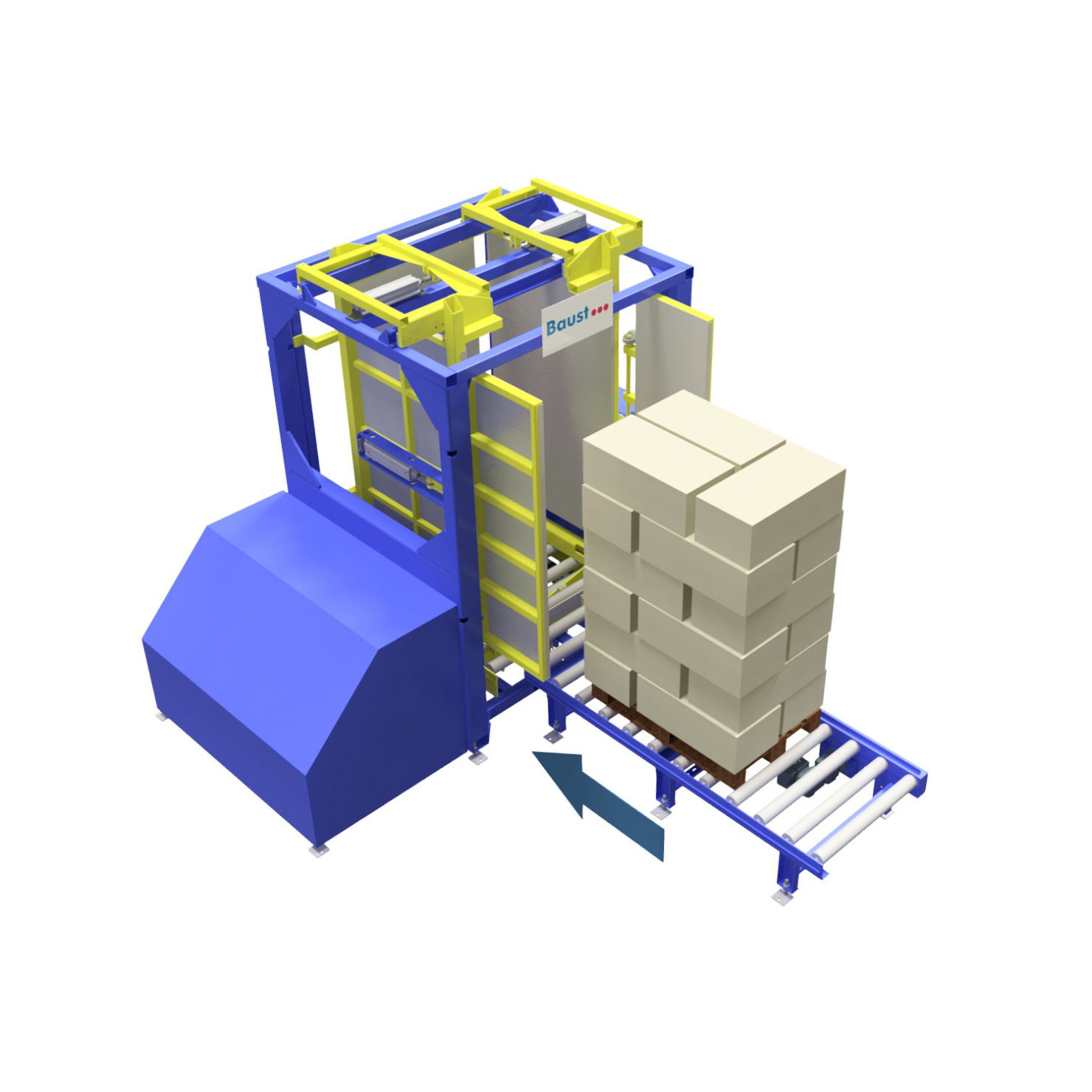

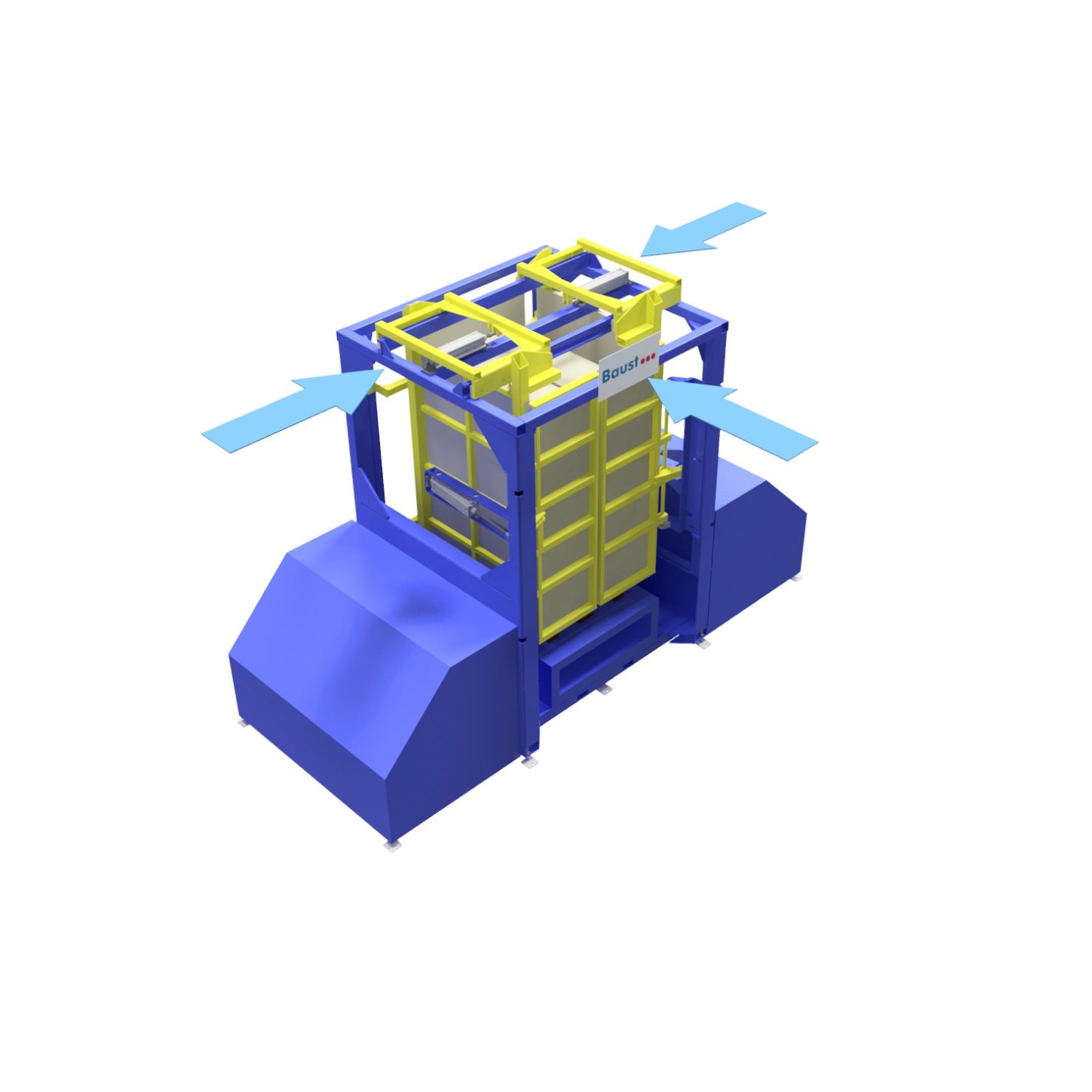

Process flow: The centering device first centers the lowest pallet on the conveyor system and then gently aligns the goods from all 4 sides. Up to 100 centering cycles per hour are possible due to an innovative process sequence and a one-sided material flow according to the travel through the layout.
The Premier Centering Stations

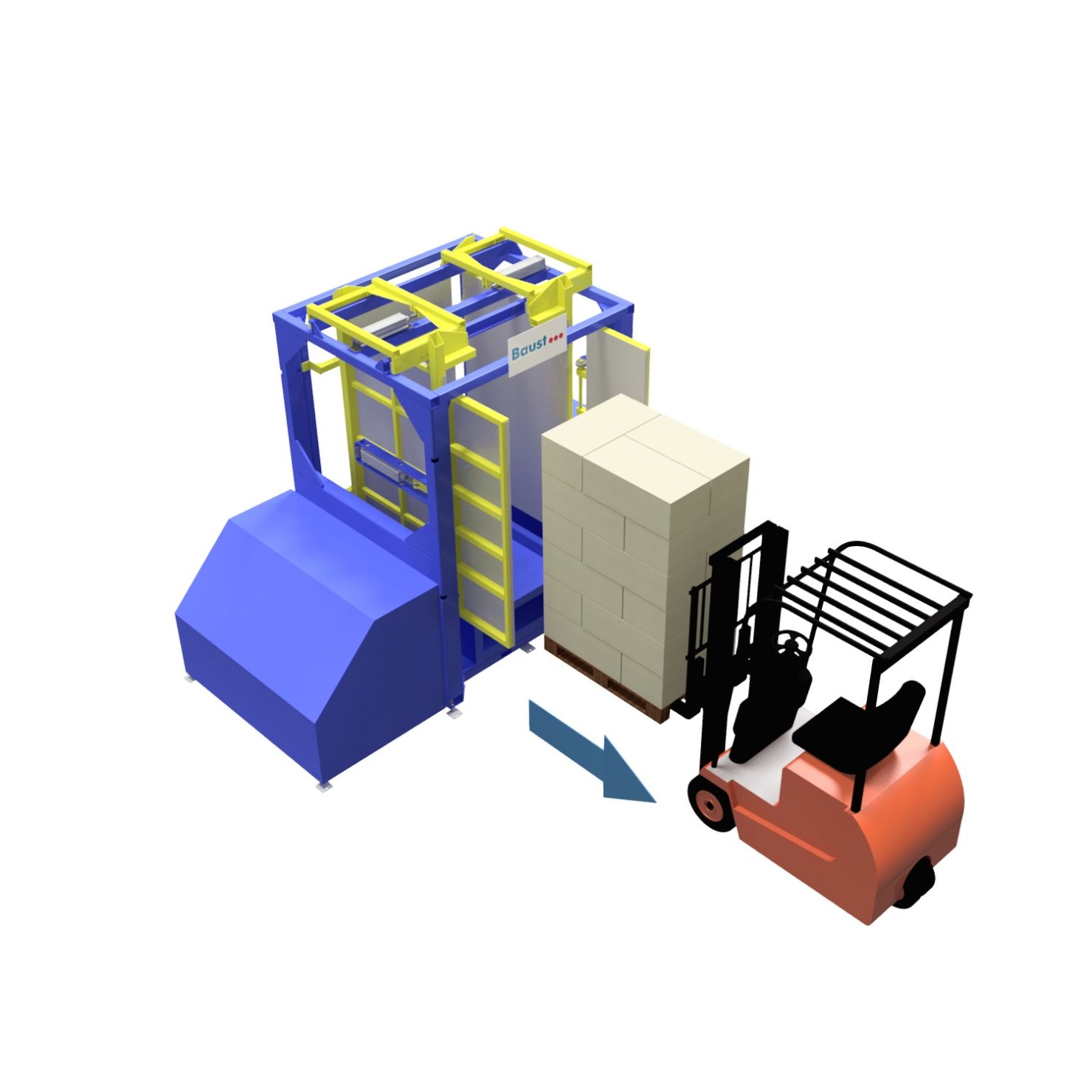

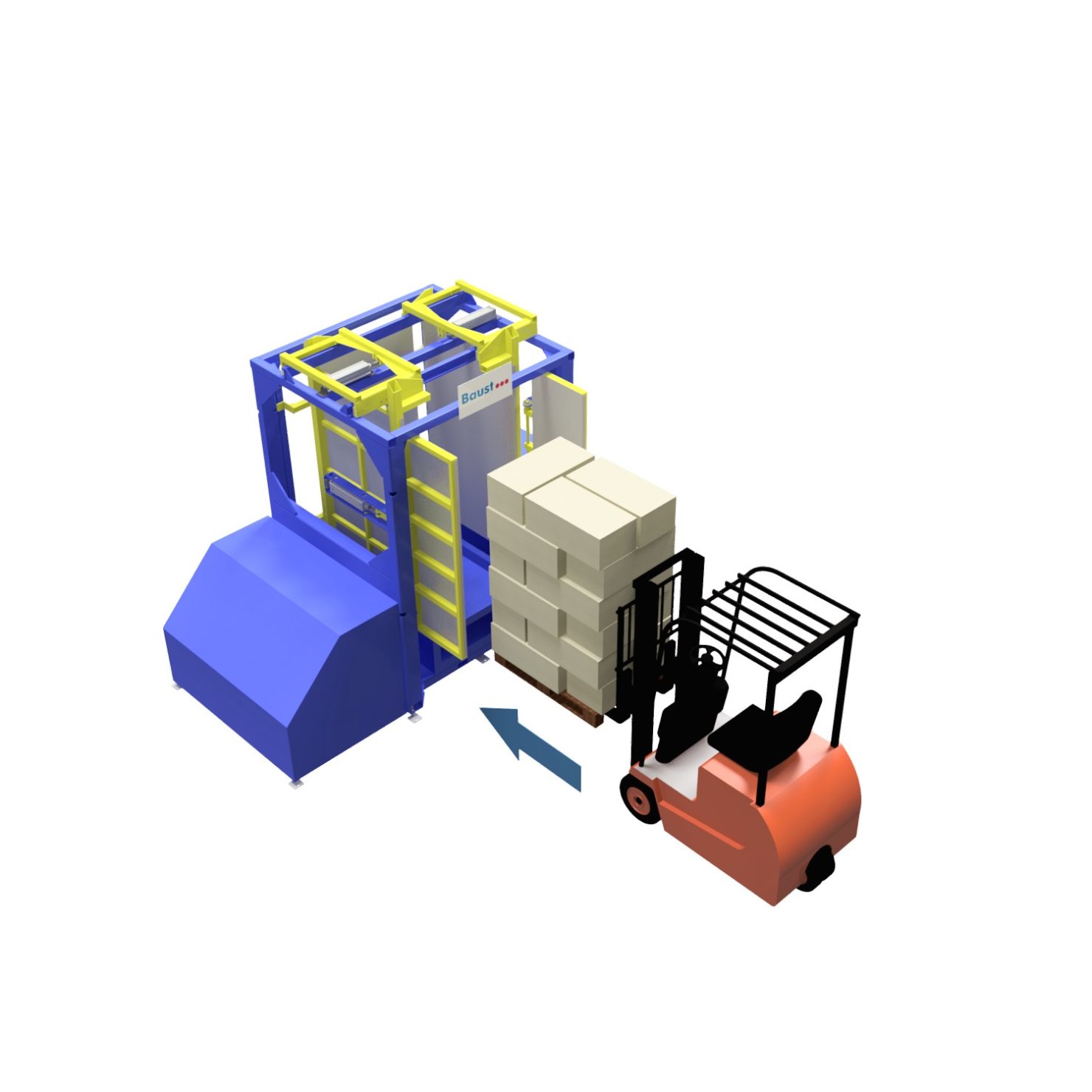

AZ 1000 Centering Station
The basic model aligns the load safely and efficiently from three sides and, thanks to its dead-end layout, is ideal for niche locations.
- Output: 30 – 50 cycles per hour
- Operating mode: dead man’s control
- Loading and unloading: electric pallet trucks or forklifts

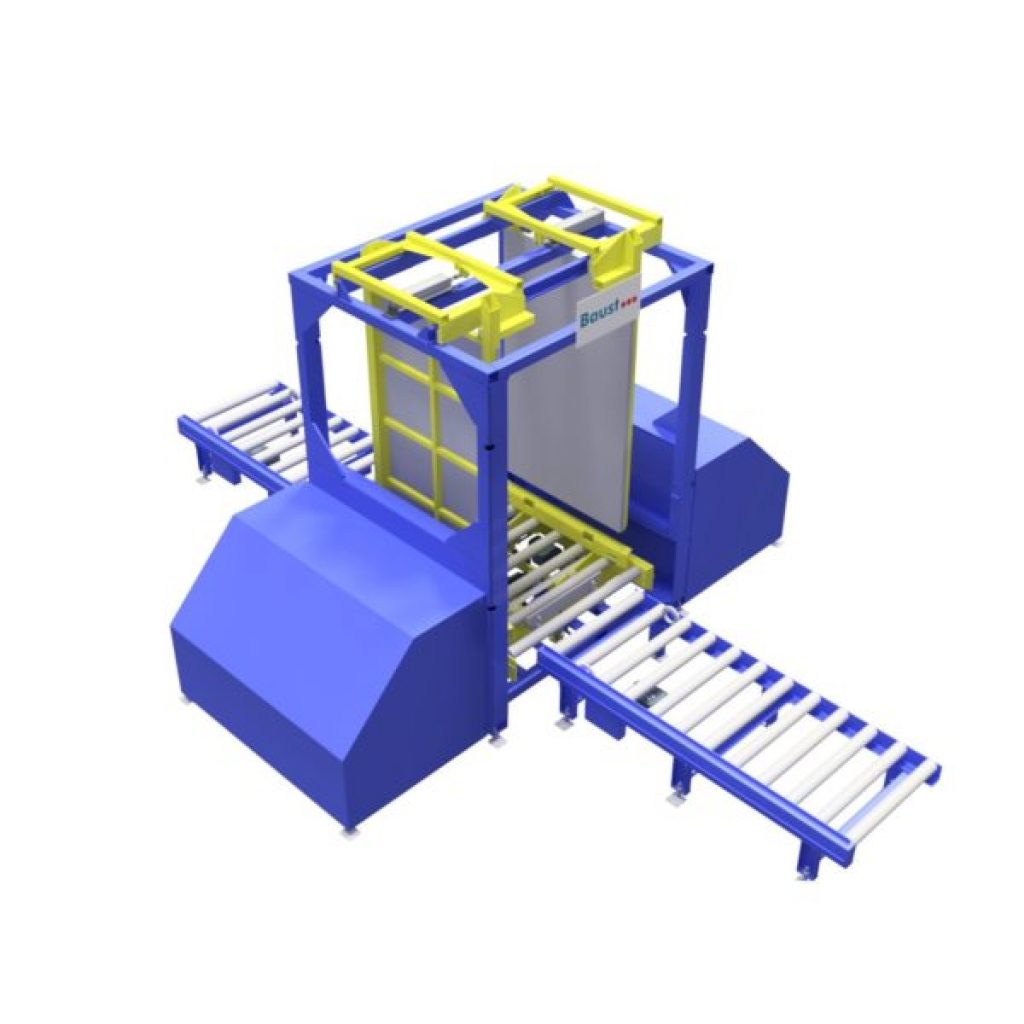

AZ 2000 Centering Station
The model aligns the load safely and efficiently from two sides and is ideal for integration into the conveyor line and ensures high throughput rates.
- Output: 90 – 100 cycles per hour
- Operating mode: automatic control
- Loading and unloading: forklifts or conveyor technology
AZ 3000 Centering Station
The model aligns the load safely and efficiently from three sides and, thanks to its dead-end layout, is ideal as an inline system for niche locations.
- Output: 30 – 50 cycles per hour
- Operating mode: automatic control
- Loading and unloading: forklifts or conveyor technology
AZ 4000 Centering Station
This model aligns the load fully automatically and safely from all four sides. The integration into the conveyor line ensures high throughput rates.
- Output: 90 – 100 cycles per hour
- Operating mode: automatic control
- Loading and unloading: forklifts or conveyor technology
Free initial consultation & technical planning
- Free planning of the defined specifications
- Fast, clean, and binding development
- Non-binding offer and detailed documentation
- Technical expertise right from the start
- Consulting, planning, production, assembly, and maintenance from a single source without subcontractors
